Canon EOS 77D DSLR Camera with 18-55mm Lens
- 24.2MP APS-C CMOS Sensor
- DIGIC 7 Image Processor
- 3.0" 1.04m-Dot Vari-Angle Touchscreen
- Full HD 1080p Video Recording at 60 fps
Comprising a versatile feature-set for both still photography and video recording, the EOS 77D DSLR from Canon blends advanced imaging capabilities with an intuitive design. Revolving around a 24.2MP APS-C CMOS sensor and DIGIC 7 image processor, images can be recorded using a broad native sensitivity range of ISO 100-25600, to suit shooting in a variety of lighting conditions, and a continuous shooting rate of 6 fps benefits working with moving subjects. The sensor's design also facilitates Dual Pixel CMOS AF, which uses phase-detection autofocus for quick, accurate, and smooth performance to suit both video shooting and stills use in live view. Alternatively, a 45-point all cross-type phase-detect AF system is also featured for shooting stills using the optical pentamirror viewfinder.
In regard to the physical design, a large 3.0" 1.04m-dot touchscreen LCD is featured for easy settings and playback control and live view monitoring, and it uses a vari-angle design to permit easier viewing from high and low working angles. A top LCD screen is also incorporated into the design for quickly recognizing your shooting settings, and a rear Quick Control dial affords more intuitive settings navigation. Additionally, built-in Wi-Fi with NFC is available for quick and convenient pairing with a smartphone or tablet for wireless image sharing, and Bluetooth is also featured for image sharing to and remote camera control from a mobile device.
24.2MP APS-C CMOS Sensor and DIGIC 7 Image Processor
45-Point All Cross-Type AF and Dual Pixel CMOS AF Systems
When recording video or shooting in live view, a Dual Pixel CMOS AF system is employed that offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
Full HD 1080p Video Recording
Unique to most video recording systems, the 77D also features an HDR Movie mode that can be used to achieve greater highlight and shadow detail when recording in high contrast scenarios. This mode captures two HD frames at different exposures, one normal and one underexposed, in short succession at up to 60 fps and then composites them during playback at 30 fps to create a movie with a longer-appearing dynamic range.
Body Design and Built-In Wi-Fi

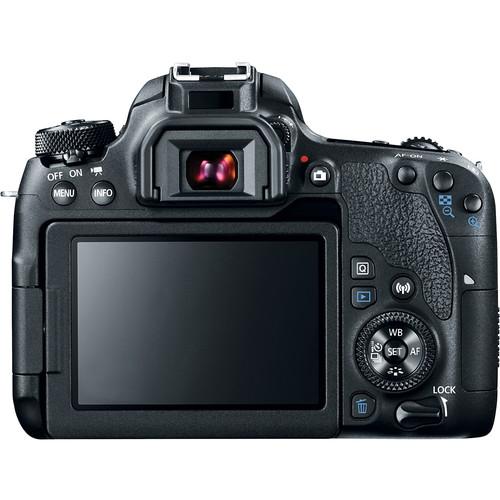

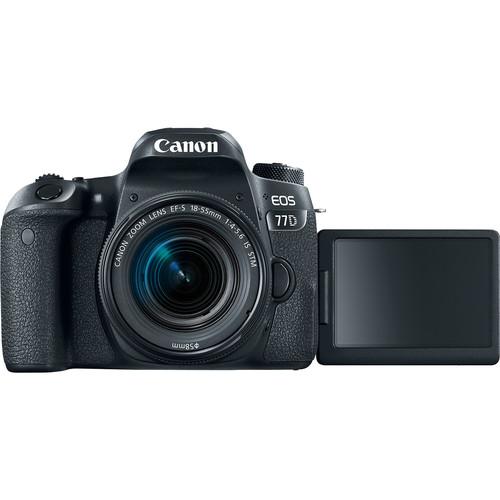

- Large 3.0" 1.04m-dot touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a vari-angle design to better enable working from high and low angles.
- Optical pentamirror viewfinder serves a clear means for eye-level shooting.

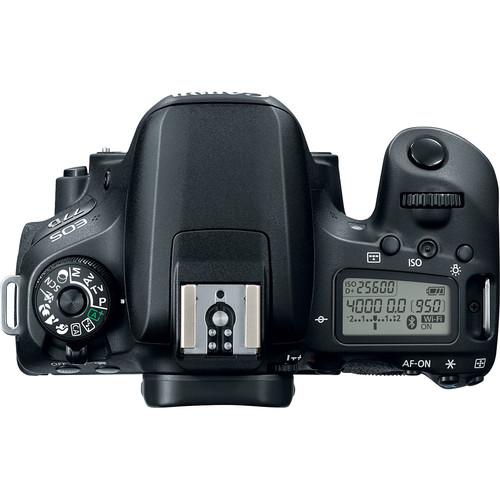

- Top LCD screen allows you to quickly recognize and adjust shooting settings.
- Rear Quick Control dial can be used to adjust camera settings in a more intuitive and direct manner.
- Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
- Bluetooth permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities.
- Included LP-E17 rechargeable lithium-ion battery provides approximately 820 shots per charge.
EF-S 18-55mm f/4-5.6 IS STM Lens
Other Camera Features
- A 7560-pixel RGB+IR metering sensor benefits both autofocus and exposure metering precision and enables Color Tracking for more accurately detecting skin colors.
- Picture Style modes: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, and User-Defined settings.
- Language support: English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, and Japanese.
Canon 77D Specs
Lens Mount | Canon EF-S |
Camera Format | APS-C (1.6x Crop Factor) |
Pixels | Actual: 25.8 Megapixel Effective: 24.2 Megapixel |
Maximum Resolution | 6000 x 4000 |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Sensor Type | CMOS |
Sensor Size | 22.3 x 14.9 mm |
Image File Format | JPEG, RAW |
Bit Depth | 14-Bit |
Image Stabilization | Digital, 5-Axis (Video Only) |
ISO Sensitivity | Auto, 100 to 25600 (Extended: 100 to 51200) |
Shutter Speed | 1/4000 to 30 Seconds Bulb Mode |
Metering Method | Center-Weighted Average, Evaluative, Partial, Spot |
Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation | -5 to +5 EV (1/3, 1/2 EV Steps) |
Metering Range | 1 to 20 EV |
White Balance | Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Continuous Shooting | Up to 6 fps at 24.2 MP for up to 190 Exposures (JPEG) Up to 6 fps at 24.2 MP for up to 21 Exposures (Raw) |
Interval Recording | Yes |
Self-Timer | 2/10-Second Delay |
Recording Modes | MP4/H.264 Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/29.97p [30 Mb/s] Full HD (1920 x 1080) at 29.97p [12 Mb/s] HD (1280 x 720) at 59.94p [26 Mb/s] HD (1280 x 720) at 29.97p [4 Mb/s] SD (640 x 480) at 29.97p [9 Mb/s] SD (640 x 480) at 29.97p [3 Mb/s] MOV/iFrame Full HD (1920 x 1080) at 29.97p [90 Mb/s] |
External Recording Modes | Full HD (1920 x 1080) at 23.976p/29.97p/59.94p HD (1280 x 720) at 29.97p/59.94p SD (640 x 480) at 29.97p |
Recording Limit | Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) |
Video Encoding | NTSC/PAL |
ISO Sensitivity | Auto/Manual: 100 to 12800 (Extended: 25600) |
Audio Recording | Built-In Microphone (Stereo) External Microphone Input |
Audio File Format | AAC |
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) |
Autofocus Points | Phase Detection: 45 (45 Cross-Type) |
Autofocus Sensitivity | -3 to +18 EV |
Viewfinder Type | Optical (Pentamirror) |
Viewfinder Eye Point | 19 mm |
Viewfinder Coverage | 95% |
Viewfinder Magnification | Approx. 0.82x |
Diopter Adjustment | -3 to +1 |
Monitor Size | 3" |
Monitor Resolution | 1,040,000 Dot |
Monitor Type | Articulating Touchscreen LCD |
Built-In Flash | Yes |
Guide Number | 39.37' / 12 m at ISO 100 |
Maximum Sync Speed | 1/200 Second |
Flash Compensation | -2 to +2 EV (1/3, 1/2 EV Steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Hot Shoe |
Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) |
Wireless | Wi-Fi Bluetooth |
GPS | No |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 85% |
Battery | 1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh |
Dimensions (W x H x D) | 5.2 x 3.9 x 3" / 131 x 99.9 x 76.2 mm |
Weight | 1.19 lb / 540 g |
Focal Length | 18 to 55mm (35mm Equivalent Focal Length: 28.8 to 88mm) |
Maximum Aperture | f/4 to 5.6 |
Minimum Aperture | f/22 to 32 |
Angle of View | 74° 20' to 27° 50' |
Maximum Magnification | 0.36x |
Minimum Focus Distance | 9.84" / 25 cm |
Optical Design | 12 Elements in 10 Groups |
Diaphragm Blades | 7, Rounded |
Focus Type | Autofocus |
Image Stabilization | Yes |
Filter Size | 58 mm (Front) |
Dimensions (ø x L) | 2.6 x 2.4" / 66.04 x 60.96 mm |
Weight | 7.58 oz / 215 g |
Package Weight | 3.36 lb |
Box Dimensions (LxWxH) | 8.8 x 6.75 x 5.8" |
